Easily expand I/O of a master control unit
ESX.3ios Overview

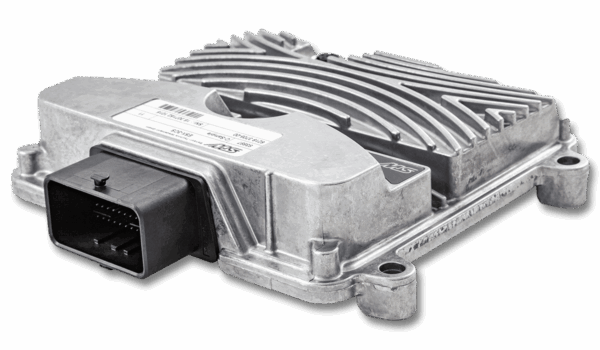

The ESX.3ios is a rugged, safety-rated CAN-I/O module designed for expanding the input/output capabilities of a master control unit in mobile machinery. It supports safety standards up to SIL 2 and PL d and communicates via CANopen, CANopen Safety, ECeS, and J1939.
Programming
The ESX.3ios is programmable through CANopen and is fully integrated into the openSYDE. Learn more about application development for 4 Series Controllers here.
Connections
- CAN interfaces: 1 (with wake up function)
- Automotive 48-pin connector (Molex 64320-1311 and 64320-3311)
- Inputs/Outputs
- Inputs: 18
- Outputs: 17
Processing
- Processor: Aurix TC1798 (300MHz)
- SRAM: 288 kB
- Flash: 4 MB
Design
- Functional safety compliant (SIL2/PL d certified)
- Die-cast aluminum housing with IP6K7/IP6K9K rating
- Operating temperature range: -40°C to +85°C
- Vibration, shock, and chemical resistance compliant to ISO 16750
