More options for expanding master controller I/O

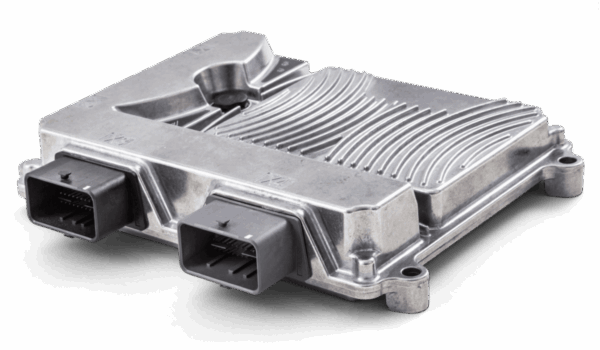

ESX.iom Overview
The ESX.iom is a rugged CAN-based I/O module designed to expand the input/output capabilities of a master controller in 12V and 24V systems. With support for safety protocols such as CANopen Safety and ECeS, it fulfills SIL 2 and PL d requirements and is ideal for use in harsh mobile environments.
Programming
Programming and configuration are achieved via CAN protocols, primarily CANopen. Safety communication is supported through CANopen Safety and ECeS, with optional compatibility for J1939.
Connections
- CAN interfaces: 1
- Inputs/Outputs
- Inputs: 32
- Outputs: 29
Processing
- Processor: Aurix TC299 (300MHz)
- RAM: 2 MB
- Flash: 8 MB
- EEPROM: 32 kB
Design
- IP6K7 and IP6K9K protection classes
- Freely programmable - SIL2 rated for mobile off-highway industry safety standards
- Cast aluminum housing - high resistance to shock, vibration, EMI/EMC, and drastic changes in temperature
- Operating temperature: -40°C to +85°C
